Tony Iommi Rig Rundown

Tony Iommi lost the tips of two fretting fingers in a workplace accident at age 17 — and that catastrophe became the origin story of one of the most recognizable sounds in rock history. The Tony Iommi guitar rig setup is a constant reference point for anyone exploring rig rundowns in heavy music, and our team has spent considerable time dissecting every component. From custom-gauge strings and downtuned SG Specials to modified Laney stacks and the iconic Parapedal, this rig is as distinctive as the man who built it.

What makes the Iommi rig fascinating is how necessity drove every major decision. The prosthetic fingertip covers he fashioned from a plastic bottle forced him toward lighter strings and lower tunings. That accident, and the workarounds it demanded, created the deep, dark tonality that defined Black Sabbath and seeded an entire genre. Our team considers it one of the most compelling gear origin stories ever documented.

This deep-dive covers every layer of the Tony Iommi guitar rig setup — guitars, amplifiers, effects, and the overlooked details that most players miss. Our coverage draws on documented interviews, archived gear catalogs, and firsthand analysis of live and studio recordings spanning decades.

The Core Gear in Tony Iommi's Guitar Rig Setup

The centerpiece of any Tony Iommi guitar rig setup discussion is the guitar itself. Iommi is synonymous with modified Gibson SG models, though his relationship with the instrument evolved considerably across his career. Our team found that most serious analyses of his tone start and end with the guitar body, and for good reason — the SG's lightweight mahogany construction and neck-heavy resonance are fundamental to the Sabbath sound.

The SG Specials and Custom Builds

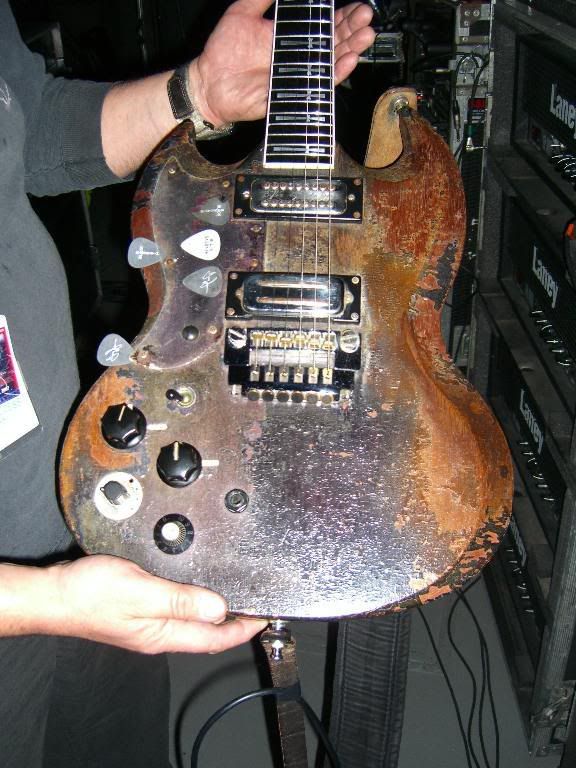

The guitar most associated with Iommi's early work is the 1965 Gibson SG Special nicknamed "The Monkey." That name came from a small toy monkey sticker he stuck on the body. The guitar was modified extensively — the original P-90 pickups were replaced with humbuckers, and the neck was refretted to accommodate the playing technique Iommi developed around his prosthetic fingertip covers. This particular instrument appeared on the earliest Sabbath recordings and tours and remains one of the most iconic pieces of gear in rock history. Later in his career, custom builder John Birch produced several instruments with active electronics and cross-inlay fretboards, pushing output and midrange focus beyond what standard Gibson hardware could deliver.

Les Pauls and Other Axes

While the SG defines the visual identity of the Iommi setup, Les Pauls entered his rotation during certain periods — particularly white 1960s Gibson Les Paul Custom models during the mid-Sabbath era. The heavier body and different pickup voicing added a slightly warmer, more compressed character compared to the SG. Still recognizably Iommi, but with a different textural quality on slower, more deliberate riff passages. Our team notes that the Les Paul period is often overlooked in gear retrospectives that focus exclusively on the SG lineage.

Strings, Tuning, and Prosthetics

This is where the Tony Iommi guitar rig setup diverges most sharply from conventional heavy rock approaches. Because the prosthetic thimbles on his fretting fingers reduce sensitivity, Iommi settled on ultra-light string gauges — reportedly as light as .008 on the high E. He tunes down a full step and a half to C# standard (or variations on drop tunings), which gives the strings a looser feel that compensates for reduced fingertip pressure. Most players who attempt to copy his tone start with the guitar and amp but overlook the string gauge entirely — that omission is why their results often fall flat.

Building the Tony Iommi Guitar Rig Setup Step by Step

Assembling a rig that approximates the Iommi sound requires understanding which components carry the most tonal weight and in what order they interact. Our team has worked through this exercise multiple times, and the consistent finding is that the guitar and amp pairing accounts for roughly 80% of the overall character. Effects are secondary — and often tertiary — in the actual signal chain.

Step 1: The Guitar Platform

The natural starting point is a mahogany-bodied guitar — an SG is the obvious choice, though any lightweight mahogany instrument with humbuckers provides a workable foundation. The key modification most players overlook is moving to the lightest string gauge comfortable for the intended tuning. Dropping to C# standard or at minimum D standard opens up the midrange response that Iommi's tone depends on. Higher-output humbuckers with a pronounced mid-frequency presence make a meaningful difference over standard PAF-voiced pickups, particularly when the amp isn't already driven to maximum.

Step 2: Amp Configuration

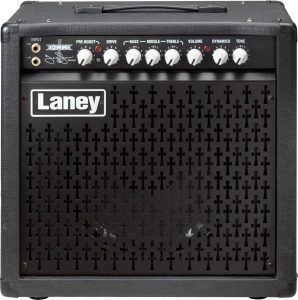

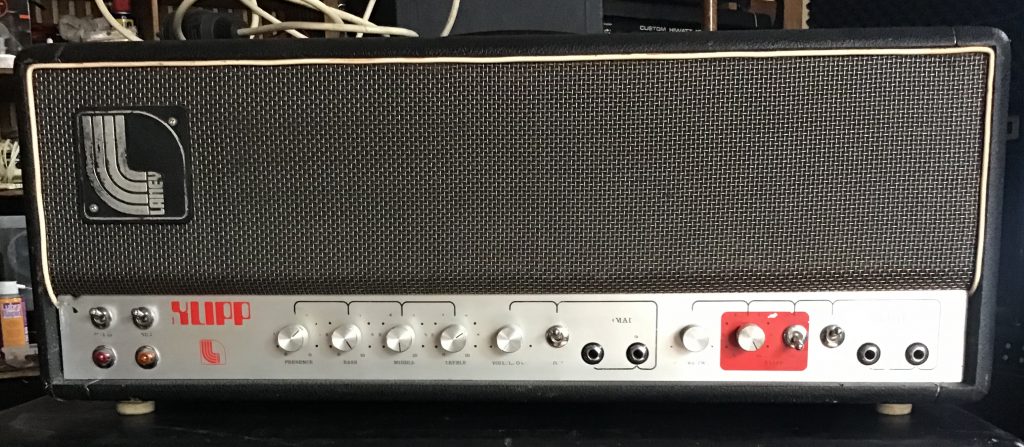

Iommi's amplifier relationship shifted significantly across his career, but the Laney era defines what most listeners associate with the classic Iommi amp tone. Our coverage of the best amplifiers for heavy metal has noted consistently that the Laney design philosophy — aggressive midrange presence, firm low-end response, and natural compression in the preamp stage — suits the Iommi style better than high-gain American designs. He ran multiple heads simultaneously for sheer stage volume, but the core tone originates in the amp's preamp section rather than from cascaded gain stages.

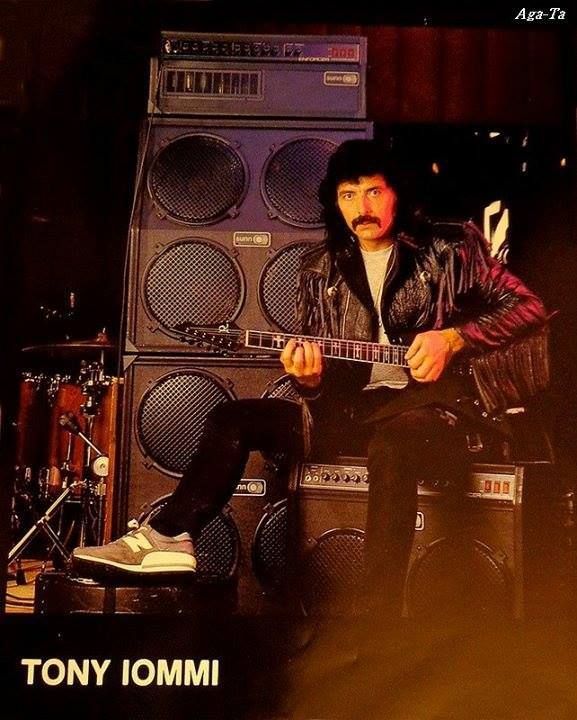

Before Laney became central to his setup, Iommi ran Sunn amplifiers in the early touring years. The Sunn 200S and comparable models provided the raw volume required for arenas before the Laney relationship developed into a formal endorsement and eventually fully custom-built heads tailored to his specifications.

Step 3: The Effects Chain

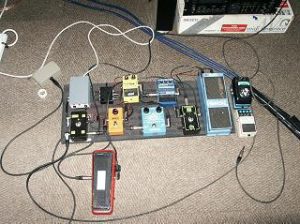

Iommi's effects usage was surprisingly minimal given the perceived complexity of his tone. The Parapedal — essentially a treble booster-style signal conditioner — was his primary tone-shaping tool. It operates before the amp to push the input stage harder, compressing the midrange frequencies in a way that feels tight rather than saturated. Combined with a wah pedal used primarily as a fixed-position filter rather than a swept effect, the chain is genuinely simple. Anyone researching the broader landscape of gain devices for this style of playing will find our guide to the best distortion pedals for heavy metal a useful companion read.

Pro insight: The Parapedal is not a distortion pedal — it's a signal conditioner. Running a treble booster into an already-hot amp input produces a fundamentally different character than stacking two overdrive boxes, and our team recommends understanding that distinction before assembling any Iommi-inspired signal chain.

How Iommi's Rig Grew Over Five Decades

Tracking the evolution of the Tony Iommi guitar rig setup across the full arc of his career reveals a player who adapted constantly while maintaining a core sonic identity. Instruments changed, amplifiers changed, and studio technology advanced enormously — but the underlying philosophy of massive midrange, controlled low end, and percussive attack remained constant from the earliest Sabbath recordings through to the final reunion shows.

The Early Sabbath Years

In the late 1960s and into the early 1970s, the rig was almost brutally simple. The Monkey SG, Laney or Sunn amplification, and minimal effects. Iommi has noted in multiple interviews that the recording chain was similarly unadorned — close-miked cabinets, minimal studio processing. The tone arrived at the speaker, not at the mixing desk. This philosophy informs the way our team approaches tone analysis across the board: establish the guitar and amplifier pairing before reaching for any additional processing layer.

The Solo and Reunion Era

By the mid-1980s, Iommi's setup had grown considerably more sophisticated. Custom John Birch guitars with active electronics entered the rotation, and the amp configuration expanded to incorporate more modern preamp stages. The signature Gibson SG models that emerged later in his career represent the distillation of everything he learned from decades of touring and recording — refined neck profiles, optimized pickup output, and hardware specifications matched precisely to what live performance demanded. His collaboration with Gibson produced several iterations, each addressing a specific complaint or refinement from the previous model.

Our team finds the evolution of the Tony Iommi guitar rig setup to be a masterclass in long-term rig thinking. Every change served a specific live or recording need rather than chasing trends. Comparing this trajectory to other player profiles — such as the methodical gear philosophy documented in the John Frusciante rig rundown — illustrates vividly how deeply an artist's physical demands and musical context shape gear decisions across decades.

Tone Tips Straight From the Iommi Playbook

Several specific techniques embedded in the Tony Iommi guitar rig setup apply broadly to any player pursuing a heavy, midrange-focused tone. These aren't abstract concepts — they're practical adjustments that produce audible, measurable results when applied correctly.

EQ and Gain Structure

Iommi's amp EQ leans heavily into the midrange, with modest bass and controlled treble. The common mistake most players make is boosting both bass and gain simultaneously, which creates a muddy, undefined low end that swallows chord voicings. Iommi keeps bass at a moderate level and lets the midrange carry the weight of every riff. Combined with a moderate gain structure — the amp is pushed hard, but not so hard that articulation disappears — this produces a thick but defined sound that cuts through at extreme volume without turning to mush.

Warning: Cranking the bass knob on a high-gain amp to emulate Iommi's heaviness is the single most common tonal mistake our team encounters. His low end is controlled and mid-forward — not scooped, not excessively boosted.

Pickup Modifications

Standard PAF-style humbuckers work reasonably well in the Iommi context, but higher-output replacements with a strong mid-frequency bias get considerably closer to his recorded tone. DiMarzio Super Distortion pickups have appeared in several of his guitars, and the Tony Iommi Signature pickup — developed through collaboration with winders over the years — specifically targets the midrange punch that defines his attack. Wiring matters equally: Iommi often ran both pickups simultaneously rather than using a conventional bridge-only or neck-only selector position, blending the attack of the bridge with the warmth of the neck for a combined voice that neither position delivers alone.

When Iommi's Approach Works (And When to Leave It)

The Tony Iommi guitar rig setup philosophy — light strings, downtune, boost midrange, keep effects minimal — suits a specific set of musical contexts with exceptional effectiveness. Heavy riff-based music, doom, stoner rock, and classic metal all benefit directly from this approach. The combination of midrange emphasis and lower tuning makes power chords sound enormous without relying on artificial gain stacking or studio processing.

Our team also identifies clear situations where this approach works against a player's goals. Bright, articulate clean tones are not a strength of this setup — the Laney-style midrange emphasis and light strings lose some of the sparkle that a Stratocaster-into-clean-Fender combination naturally delivers. Similarly, country, fusion, and jazz contexts demand a level of string articulation and tonal clarity that the Iommi voicing actively suppresses.

Fast technical playing also runs into problems with ultra-light strings at lower tunings. The strings become too slack for reliable intonation at speed, and the looser feel that makes Iommi's bends and vibrato so expressive works against precise picking at tempo. Our team recommends reserving the Iommi string spec specifically for riff-focused, rhythmically deliberate playing contexts, and keeping standard gauges for situations where technical precision takes priority. The rig is a specialized tool, and using any specialized tool outside its intended context produces predictably unsatisfying results.

The Biggest Myths About the Iommi Guitar Rig Setup

The Tony Iommi guitar rig setup has accumulated significant mythology over the decades, and separating fact from convenient narrative matters for anyone trying to learn from it seriously.

Myth 1: The tone is built on massive distortion. This one persists across gear forums and tutorial videos alike. Iommi's recorded tone on the early Sabbath albums is actually moderate in gain by contemporary standards. The heaviness comes from downtuning, midrange focus, and the natural compression of a loud tube amp pushed hard — not from extreme gain stages. Running the same riffs through a modern high-gain preamp with scooped mids produces something that sounds entirely different from the original recordings.

Myth 2: The Monkey guitar is the only instrument that matters. While the Monkey SG is central to the early origin story, Iommi used a wide variety of instruments across his career and achieved the same core tonal identity consistently across all of them. The guitar matters — but technique and signal chain carry equal weight. Acquiring a vintage SG Special without understanding the rest of the setup produces at best a partial and often misleading result.

Myth 3: The prosthetics limited what Iommi could play. Our team considers this the most important myth to correct. The prosthetics were the catalyst for an entirely new approach to the guitar. The lighter strings, lower tunings, and modified fretting technique that the fingertip covers necessitated are precisely what makes Iommi's style unique. Without that accident and its workarounds, heavy metal guitar develops along a very different trajectory.

Myth 4: Replicating the rig requires expensive vintage gear. Modern equipment — a quality SG-style guitar, a mid-focused tube amp, and a simple treble booster — gets remarkably close to the Iommi sound without requiring vintage instruments or custom builds. The variables that matter most (string gauge, tuning, and amp EQ structure) are all achievable on contemporary gear at a fraction of the cost of period-correct equipment.

Frequently Asked Questions

Next Steps

1. The best first move is sourcing an SG-style mahogany guitar and experimenting with light-gauge strings tuned to C# standard — this single change delivers more tonal impact than any other element of the rig, and our team considers it the essential starting point for anyone serious about replicating the Iommi sound.
2. From there, studying mid-focused tube amp designs — particularly the Laney lineup — provides a clear picture of the amplification character that makes the setup work. Our guide to the best amplifiers for heavy metal is a practical next reference.
3. Adding a treble booster before the amp input and experimenting with the amp's preamp gain structure — rather than relying on external overdrive pedals — produces the signal-chain dynamic that defines the Iommi approach.
4. Listening critically to the early Black Sabbath albums with specific focus on low-end restraint and midrange presence repays the effort considerably — most players underestimate how controlled the bass frequencies are in those recordings, and that context reshapes EQ decisions.
5. Comparing the Iommi approach against other documented setups in our rig rundown archive helps identify which tonal decisions are specific to his context and which translate broadly to other playing styles and musical situations.
