Jimmy Page's Favorite Amp: The Marshall 1959 SLP Super Lead Explained

The Marshall 1959 SLP Super Lead explained directly: this is a 100-watt, all-tube British amplifier head powered by four EL34 output tubes, built to be driven at punishing volumes, and responsible for the defining hard rock guitar tone of the late 1960s and beyond. Jimmy Page used this exact amplifier to record Led Zeppelin's entire catalog, and if you want to understand why that sound remains unmatched after decades of imitation, you need to understand what this circuit actually does — not just what it looks like sitting on a backline. Our Jimmy Page Guitar Setup And Rig Rundown covers Page's full signal chain in detail, but this article goes deep on the amp itself.

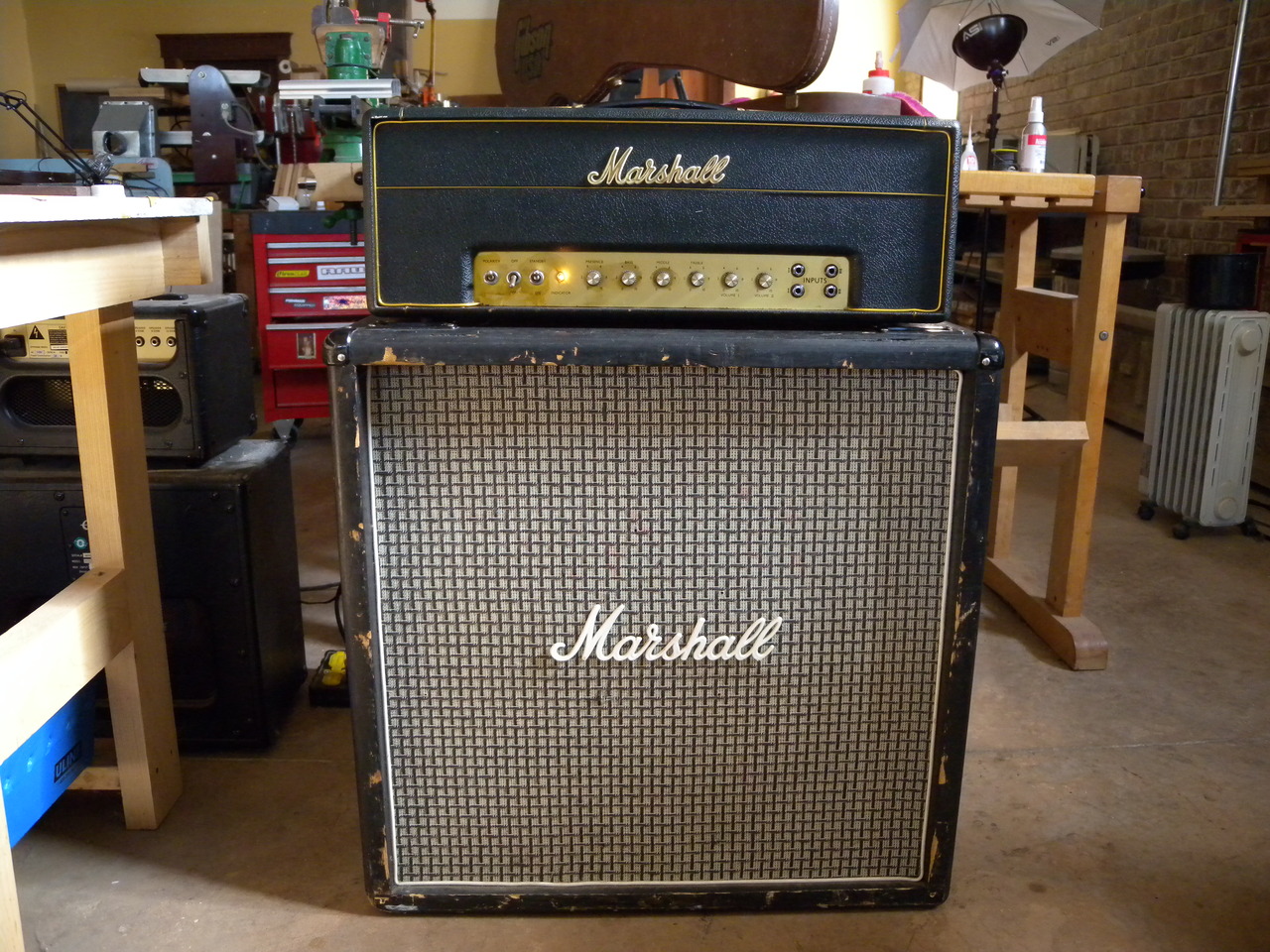

The 1959 SLP belongs to what collectors call the "plexi" era — roughly 1965 through 1969 — named for the plexiglass front panel Marshall used on their amplifiers during that period. This amp was not conceived for bedroom volumes or clean headroom. It was designed to be brutally loud, and when you push it past a certain threshold, the interaction between the preamp and the EL34-loaded power section produces a harmonic saturation that every boutique builder since has been chasing without fully catching. That saturation is not a flaw to be engineered away. It is the entire point.

This is a serious, single-purpose instrument with a well-defined role. If you want to explore the broader landscape of rock guitar rigs and classic amp setups, our music gear coverage goes deep on everything from vintage British heads to modern boutique alternatives. But here, the focus is tight: what the Marshall 1959 SLP Super Lead costs, how it works, where it excels, where it fails, and what equipment you need alongside it to make it actually perform at its best.

Getting Immediate Results from the Marshall 1959 SLP Super Lead

When you sit down in front of a 1959 SLP for the first time, the front panel looks almost insultingly simple. Two channels — Normal and Brilliant — each with a single Volume control. Shared Bass, Middle, and Treble knobs. No master volume. No effects loop. No channel switching. No reverb. What you see is genuinely what you get, and the depth of the amp is not in its feature set — it is in how you interact with the controls it does have.

The first thing you need to know is that the two channels are not meant to be used in isolation. They are designed to be linked using a short patch cable plugged between Input 1 of each channel, with your guitar cable going into Input 2 of either side. This parallel connection — the channel-link technique — was Jimmy Page's primary approach, and it fundamentally changes the character of the amplifier. Yngwie Malmsteen's approach to his Marshall rig follows similar parallel-channel logic, which tells you something about how universal this technique is among players who have studied the amp seriously.

The Channel-Link Technique

Channel linking is not a modification — it is an intended design feature. When you bridge both channels with that short patch cable, both preamp circuits feed simultaneously into the power section. The result is a broader frequency response with more complex harmonic interaction than either channel alone produces. The Brilliant channel contributes high-frequency sparkle and presence; the Normal channel adds warmth and body. Together, they generate the full, three-dimensional character you hear on recordings like "Communication Breakdown" and "Heartbreaker."

Your Volume ratio between channels determines the tonal balance. Page typically ran the channels at slightly different levels — the Brilliant channel a touch higher — creating an asymmetry that prevents the combined tone from collapsing into mud at high volumes. Start with the Brilliant at 6 and the Normal at 5. Once you understand how your guitar's pickup output interacts with the preamp at those settings, make adjustments from there rather than guessing.

Linking your Normal and Brilliant channels with a short patch cable costs nothing, takes ten seconds, and immediately puts you inside the tonal territory Jimmy Page spent years developing in the studio.

Using the Passive EQ Stack Correctly

The EQ section on the 1959 SLP is passive, meaning the tone controls subtract frequencies rather than add them. The midrange at noon is at its maximum natural output — pulling the Mid knob below noon actually scoops the mids rather than boosting them. This is the inverse of what many players expect from modern amp EQ, and it causes endless confusion for guitarists coming from contemporary amplifiers.

The correct approach is to start all three controls at noon and work backward through subtraction. Page ran Bass around 6–7, Mid around 5–6, and Treble around 6–7 — keeping the tone full and present without pushing the low end into the muddiness that appears when Bass exceeds 8. Do not start at 10 on any control and work backward. You will spend an hour wondering why the amp sounds terrible when the answer is that you have removed the frequency relationships the amp was voiced around.

Mistakes That Kill Your Plexi Tone

Playing It Too Quiet

The most damaging mistake you can make with a 1959 SLP is treating it like a modern amplifier that sounds good at any volume. It does not. At Volume 3 or 4, the EL34 output tubes are barely working. The tone is thin in the upper mids, compressed in a lifeless way, and completely lacking the power section saturation that defines the amp's character. Volume 6 is where the amp begins to breathe. Volume 8 is where it becomes the amplifier you hear on Led Zeppelin I.

This is a genuine practical problem for players who cannot produce concert-level volume in their playing environment. An attenuator placed between the head and the cabinet is the standard solution — it absorbs power without directly affecting the circuit. A reactive attenuator like the Universal Audio OX or the Two Notes Torpedo Captor X preserves more of the amp's dynamic feel than a basic resistive attenuator, but no attenuation solution is completely transparent. You lose some of the cabinet's acoustic contribution regardless of which device you use. James Hetfield's approach to high-volume Marshall rigs is instructive here — he managed stage volume through careful cabinet placement and monitor configuration rather than attenuation, keeping the amp operating in its optimal range.

Tube and Bias Errors

Running the wrong output tubes or failing to bias after a retube ranks as the second major mistake. The 1959 SLP runs EL34s, not 6L6s. The difference is not cosmetic. EL34s have a harder, more aggressive midrange character and operate at different plate voltage tolerances than 6L6s. Some technicians substitute 6L6s claiming improved reliability, and the amp will run, but the tone shifts noticeably toward an American character. If you are buying a 1959 SLP for the British sound, the tube complement is non-negotiable.

Always have a qualified technician bias the amp after installing new output tubes. The plate voltage inside a 1959 SLP runs between 450 and 500 volts DC. Improper bias accelerates tube wear and destroys tone in both directions — biased too cold, the amp sounds sterile and harsh; biased too hot, you burn through tubes quickly and risk catastrophic transformer failure.

Never attempt to bias a 1959 SLP yourself unless you have formal electronics training — the voltages inside this amplifier will kill you, not just give you a shock.

What a Marshall 1959 SLP Super Lead Actually Costs

Budget for the Marshall 1959 SLP Super Lead explained across three tiers: original vintage units, current Marshall reissues, and the ongoing operational costs most buyers do not factor in when they are focused on the initial purchase price.

Original Plexis vs. Reissues

Original vintage units are collector items as much as they are working amplifiers, and many have been modified over the decades — master volumes added, transformers replaced, capacitors swapped out. Modifications can reduce collectability and affect tone depending on what was done and who did it. A genuinely stock, unmodified original plexi is a rare object. The current reissue is a serious amplifier in its own right. It uses printed circuit board construction rather than point-to-point wiring, which purists note, but the transformer specification and tube complement are close enough that the fundamental tonal character holds up under rigorous comparison.

Hidden Running Costs

A matched set of four EL34 output tubes costs $80–$150 depending on brand and source. Under regular playing conditions at appropriate volumes, expect to retube every 18–36 months. Factor in professional biasing labor at $75–$150 per session, and you are looking at $200–$300 every two years in maintenance costs at minimum. A quality 4x12 speaker cabinet — either a vintage Marshall 1960 or a current production equivalent — adds another $600–$1,200 to the initial investment if you do not already own one. The 1959 SLP is not an expensive amp to buy. It is an expensive amp to own correctly.

When the 1959 SLP Is Your Amp — and When It Isn't

Where It Thrives

The 1959 SLP is the correct tool for classic rock, hard rock, and early heavy metal played at stage volumes. Its defining characteristic is natural overdrive through power section saturation — the tone compresses dynamically with your playing, so lighter picking cleans up and harder picking pushes into distortion. This dynamic response is what pedal-based distortion consistently struggles to replicate convincingly, because pedals apply gain at a fixed ratio regardless of your pick attack. According to the Marshall amplification Wikipedia entry, the 1959 SLP remains in continuous production specifically because the demand from players seeking this tonal character has never diminished since the amp first appeared.

Kirk Hammett's early Metallica tones were built on Marshalls pushed hard with a wah and a booster in front — a lineage that traces directly to the plexi era. Our Kirk Hammett Guitar Setup And Rig Rundown shows how that approach developed across Metallica's catalog. Dave Mustaine took a parallel path with modified Marshalls throughout Megadeth's heaviest periods; see our Dave Mustaine Guitar Rig Rundown for how he pushed the Marshall platform into heavier territory than Page ever intended.

Where to Look Elsewhere

If you record primarily at home, the 1959 SLP will frustrate you unless you invest in a quality reactive attenuator or a load box. The amp sounds its worst at the volumes where neighbors do not call the police. If you play primarily clean and drive your tone from pedals rather than the amp itself, the 1959 SLP is the wrong platform — its preamp is voiced for natural saturation, not for maintaining clean headroom as a transparent pedal foundation. And if your playing demands channel switching, a built-in effects loop, or onboard reverb, this amplifier has none of those things and was never designed to. The 1959 SLP is a single-purpose instrument built to do one thing better than almost anything else ever built — and trying to force it into a role it was not designed for is simply a waste of a great amplifier.

If you need flexibility, buy a different amp — the 1959 SLP exists to do one thing exceptionally well, and demanding that it do everything else only reveals a misunderstanding of what makes it great.

The Gear Stack That Completes the Marshall 1959 SLP Super Lead Setup

Cabinet Selection

The 1959 SLP head requires a 4x12 cabinet to reach its full acoustic potential. A 2x12 works in practice, but the full cabinet — either a Marshall 1960A (angled top) or 1960B (straight) — provides the acoustic mass and speaker interaction the amp was designed around. The speakers matter enormously. Celestion Greenbacks (25W, 16 ohm) were the original choice and produce a warmer, more compressed, harmonically complex character. Celestion G12T-75s are the current Marshall standard cabinet speaker and handle more power with a more aggressive upper-midrange emphasis. Page used Celestion speakers throughout his career with Led Zeppelin, and the Greenback character is embedded in how the amp was voiced.

Ohm matching between head and cabinet is not optional. Running the 1959 SLP's 16-ohm output tap into an 8-ohm cabinet places sustained stress on the output transformer over time. Match the head's output impedance to the cabinet's input impedance exactly. A one-step mismatch — 16 ohms into 8, or 8 into 16 — is survivable short-term but is not a configuration you want to run permanently.

Guitars and Pedals

The 1959 SLP is voiced around humbuckers. A Les Paul Standard with PAF-style pickups is the canonical pairing, and Page's use of a 1959 Les Paul Standard through these heads is the reason that specific guitar-amp combination defines an entire era of recorded music. Single-coil guitars work — a Stratocaster through a 1959 SLP has its own distinct, compressed character — but the output level and frequency distribution of a humbucker feeds the preamp more efficiently and produces the full tonal range the amp was designed to deliver.

For signal chain additions, the 1959 SLP does not need a distortion pedal in front of it. What it responds best to is a treble booster or a low-gain overdrive used to push the preamp input harder. The Dallas Rangemaster treble booster was Page's studio tool for specific recording contexts — it shifts the frequency emphasis into the mids before the amp's preamp, producing a more focused, harmonically dense overdrive. A volume pedal in the chain gives you the amp's natural clean-up response without leaving your playing position. An analog delay — either an original Echoplex EP-3 or a quality modern equivalent — covers the time-based dimension of Page's live performance approach. That is a complete signal chain. For a contrast in how other British players approach tone building from a completely different angle, our Graham Coxon Guitar Rig, Gear, and Setup Explained is worth reading alongside this one.

Frequently Asked Questions

Every tone Jimmy Page ever coaxed from a Marshall 1959 SLP was already inside that amp waiting — your only job is to turn it up enough to let it out.
