Behringer Xenyx 1204USB Mixer Overview

The Behringer Xenyx 1204USB mixer is worth buying if you need a compact analog board with USB recording capability and a tight budget. If you've been scanning music gear listings and keep seeing this board pop up, there's a reason — it covers more ground for under $200 than anything else in its class, and most musicians in home or small-venue setups won't outgrow it quickly.

The 1204USB is a 12-input, 2-bus analog mixer with an integrated USB audio interface. You get 4 mono mic/line channels, each with a XENYX preamp and phantom power, 4 stereo line channels, onboard single-knob compression per mono channel, a 7-band graphic EQ on the main output, 100 built-in effects, and a direct USB stereo path into any DAW. One mixer, several jobs — band rehearsal, home tracking, podcasting, small-venue PA.

This overview covers the full feature set, how to get it set up correctly, where it stands against the competition, and the exact mistakes that will ruin your mixes. Read this before you plug anything in.

What the Behringer Xenyx 1204USB Actually Delivers

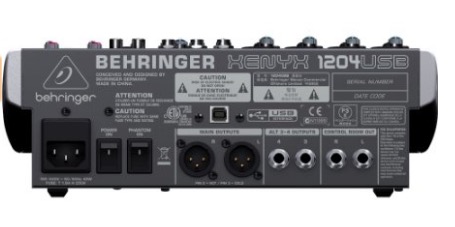

The 1204USB is not a stripped-down toy. It's a proper analog console that happens to include a USB interface on the back panel. According to Wikipedia's overview of mixing consoles, the core function of any mixer is signal routing and level management — and the 1204USB handles both reliably at its price point. Understanding what each section does before you start turning knobs will save you a lot of frustration.

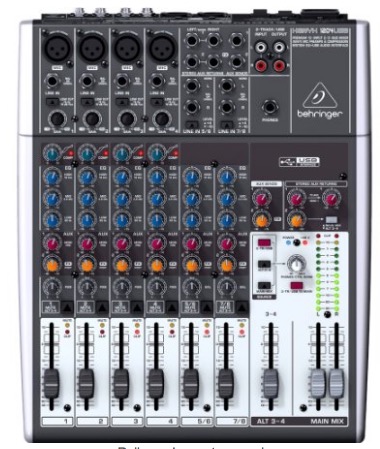

Channel Layout and Input Options

Here's exactly what you're working with:

• 4 mono mic/line channels — XLR/TRS combo jacks, each with a XENYX preamp, gain control, low-cut filter, 3-band EQ, and 60mm fader
• 2 stereo line channels (5/6 and 7/8) — dual TRS inputs, built for keyboards, drum machines, and stereo returns
• 2 additional stereo channels (9/10 and 11/12) — RCA inputs, useful for phone, tablet, or playback device feeds
• 2 aux sends per channel — one pre-fader for monitor mixes, one post-fader for effects
• Main L/R outputs — XLR balanced, suitable for driving powered monitors or a PA system directly

The routing is straightforward for anyone who has used an analog mixer before. If you're brand new to analog desks, the signal flow — source into channel, gain sets level, EQ shapes tone, fader controls contribution to the main mix — becomes intuitive within a few hours of hands-on use.

Preamps, Compression, and Effects

The XENYX preamps are clean and quiet enough for home recording and small live applications. Don't expect Neve-level warmth, but for this price point they're perfectly transparent and won't introduce obvious coloration into your signal.

• Global +48V phantom power switch for condenser microphones on all four mono channels
• One-knob compressor per mono channel — controls dynamics without requiring you to understand threshold, attack, or release
• 100 onboard FX presets including reverbs, delays, chorus, and flangers via the dedicated FX bus
• 7-band graphic EQ on the main bus output — a real differentiator at this price
• Clip LEDs on each channel to monitor gain before it saturates the signal path

Getting Up and Running Fast

You can have the 1204USB fully operational in under 20 minutes. The key is working in the right order — don't just start plugging things in at random and expect it to work perfectly.

Connection Checklist

1. Connect main L/R outputs (XLR or TRS) to your monitors or PA speakers
2. Run a USB-B cable from the mixer's back panel to your computer
3. Connect microphones to channels 1–4 via XLR; toggle phantom power on if you're using condensers
4. Connect keyboards, drum machines, or line-level sources to channels 5–10 via TRS or RCA
5. Set all channel faders to unity (0 dB marker) before bringing up the main fader
6. Bring up each source individually and use the gain knob to set input level — aim for signal peaking in the yellow LEDs, never the red

USB and DAW Routing

The 1204USB sends a stereo mix over USB — not individual tracks. What you hear on the main mix is exactly what gets recorded. You cannot isolate individual channels in your DAW after the fact. Understand this before you commit to a session.

• Select "Behringer USB Audio" as your input device in your DAW's preferences
• Create a single stereo input track and arm it for recording
• Use the USB/2TR to Main button to control whether USB playback from your computer feeds back through the monitors
• On Windows, install ASIO4ALL for low-latency driver performance; on Mac, Core Audio works natively without additional drivers
• Set your DAW's buffer size to 256 samples as a starting point — reduce if you hear latency, increase if you get dropouts

Pro tip: Treat the 1204USB like a live mixing board — commit to your blend before you record, because there's no going back to fix individual tracks in post.

How the 1204USB Compares to Its Closest Rivals

Side-by-Side Spec Comparison

What You Actually Give Up at This Price

The Mackie ProFX10v3 has noticeably better preamps and a metal chassis built for road use. The Yamaha MG12XU has cleaner internal signal routing and better long-term reliability. Both cost significantly more. The 1204USB wins decisively on price-per-feature ratio, and for most home studio users, the preamp quality gap is genuinely irrelevant to the final recording quality.

• No multi-track USB recording — you're limited to a stereo mix at all times
• Plastic-heavy build quality; not suitable for regular touring or gigging in rough conditions
• The effects engine sounds dated and processed — use it sparingly or route your effects externally
• Preamps introduce light noise at very high gain settings, which becomes audible in quiet passages

Mixing Mistakes That Will Cost You Good Sound

Ignoring Gain Staging

This is the most common mistake on budget boards, and it's completely avoidable. Gain staging determines the noise floor of your entire mix — get it wrong at the input stage and no amount of EQ or compression downstream will rescue the recording.

• Set your input gain so signal peaks consistently in the yellow LED range, never pinning the red
• Don't compensate for a quiet source by cranking the channel fader — the gain knob is for setting optimal input level, the fader is for mix balance
• The one-knob compressor operates after the gain stage; set your gain correctly first, then apply compression
• Test each channel individually at performance volume before building your full mix — surprises during a session are almost always gain-staging problems
• If you're using a dynamic mic like an SM58 or SM7B, don't be afraid to push the gain knob well past noon — these mics need it

Overcooking the EQ and Effects

The 3-band channel EQ and the 7-band main graphic EQ are both useful — but only when used with restraint. Boosting everything simultaneously is the fastest way to turn a clean mix into a dense, muddy wall of sound.

• Cut problem frequencies before you boost anything — subtractive EQ almost always sounds more natural
• The low-cut filter on each mono channel (the small HPF switch near the gain knob) removes sub-80Hz rumble and proximity buildup — use it on every vocal mic by default
• Leave the onboard effects engine off unless you specifically need reverb; it contributes background processing noise that's audible in quiet mixes
• The 7-band main EQ is for correcting room resonances and speaker coloration, not for making the mix sound "bigger" or "louder"

Warning: Stacking aggressive channel EQ boosts on top of graphic EQ boosts is the single fastest way to destroy an otherwise clean recording — always start flat and only adjust what you can clearly hear.

Pro Techniques for Squeezing Better Sound Out

Aux Sends and Monitor Mixes

The pre-fader aux send is one of the 1204USB's most genuinely powerful features. It lets you create an independent monitor mix that doesn't change when you adjust the main fader — a critical distinction during live performance. If you want to understand why having a separate monitor mix matters so much on stage, read this piece on the advantages of in-ear monitoring for stage performance — the same principles apply to wedge monitors fed from this board.

• Aux Send 1 is pre-fader — route it to a headphone amp or stage wedge for an independent performer mix
• Aux Send 2 is post-fader — use it to feed an external reverb or delay unit that tracks your fader movements
• You can run a completely separate headphone cue mix for a vocalist on Aux 1 while you independently control the front-of-house main mix
• The aux return brings your external effects back into the main mix without using up a channel strip

Recording Tricks That Actually Work

Because the 1204USB only records a stereo mix to USB, your recording workflow must be deliberate. Plan your blend before you hit record — you won't be able to fix it later.

• Do a dry reference take first — bypass EQ and effects entirely, set only levels, and record a clean flat version before you start shaping the sound
• Use the 2TR input (RCA) to route backing tracks or a click track from your computer back into the mix for performers, without it contaminating the main USB recording output
• For podcasting with dynamic mics, the onboard compressors work well — set them around 9 o'clock for a gentle, transparent result on conversational voices
• Pan stereo sources hard left and hard right in the stereo channels for maximum separation in the recorded stereo image

Planning Your Rig Around the 1204USB

When the 1204USB Is Enough

Don't let gear forums convince you that you need to spend more just because better options exist. This mixer is genuinely sufficient for a wide range of real-world applications:

• Home recording with up to four microphone sources — the four preamps cover most small-group sessions without crowding the desk

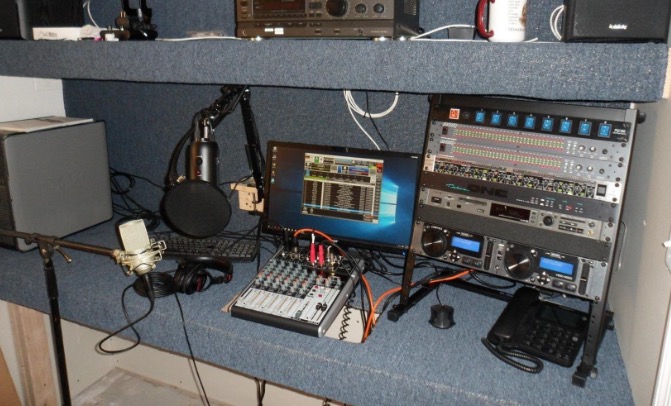

• Podcast production with up to four hosts, each on a dedicated mic channel with independent compression and EQ
• Live sound for venues under 100 people — the main graphic EQ handles most room resonance problems directly
• Permanent rehearsal room installation — affordable enough to leave at the practice space and not worry about
• Multi-source content creation setups — mixing a microphone, an instrument, and a computer playback source simultaneously

Players who have their tone locked in through their pedalboard and amp — like the rigs documented in the Tony Iommi rig rundown — primarily need a mixer for level management and routing, not tone shaping. That's exactly the 1204USB's strongest role.

Expanding Your Signal Chain

When you're ready to grow, the 1204USB works well as a front-end submixer feeding into a larger interface or main console. It doesn't become useless the moment you buy something bigger — it becomes a stage box.

• Add a hardware reverb or delay unit via the Aux 2 send and return loop for higher-quality external processing
• Use channels 9/10 or 11/12 as a stereo return from a separate drum submixer, keeping the main mix clean
• When your critical vocal tracks need cleaner preamps, add a dedicated 2-channel preamp and feed it into the line inputs on channels 1–4, bypassing the built-in preamp stage
• If you're building a complete home studio signal chain, pairing this board with one of the best clean guitar amps gives you a transparent full-signal path from instrument to recording

The 1204USB's real long-term value is that it never goes to waste. It earns a second life as a utility mixer, rehearsal board, or broadcast submixer even after you upgrade your main recording interface.

Key Takeaways

• The Behringer Xenyx 1204USB mixer delivers 12 inputs, XENYX preamps with phantom power, per-channel compression, a 7-band main EQ, and USB stereo recording for well under $200 — one of the strongest feature-to-price ratios in its class.
• USB output is stereo-only, not multi-track, so you must commit to your mix blend before recording rather than relying on post-production fixes.
• Proper gain staging and restraint with onboard EQ and effects are the two habits that separate clean, professional-sounding results from amateur mixes on this board.
• The 1204USB scales gracefully as your studio or live rig grows — it transitions naturally into a submixer or stage box when you're ready to upgrade your main interface.
