David Gilmour Guitar Setup And Rig Rundown

The David Gilmour guitar rig is one of the most studied setups in rock history — a layered combination of vintage Stratocasters, carefully chosen effects pedals, and clean Hiwatt amplifiers that produced some of the most recognizable guitar tones ever committed to tape. If you're exploring guitar gear, Gilmour's approach is worth studying in detail. His sound on records like The Dark Side of the Moon and Wish You Were Here didn't happen by accident — it came from specific, deliberate choices that you can analyze, understand, and partially recreate on your own rig.

Gilmour joined Pink Floyd in 1967 to replace Syd Barrett and spent decades refining a rig built around maximum expressiveness — from glassy, clean tones to sustained, singing leads that seem to float above the mix. His setup is a system, not a collection of random purchases. Understanding how each piece interacts helps you make smarter decisions about your own gear, whether you're assembling a pedalboard from scratch or trying to extract more from what you already own.

This rundown covers his core guitars and amplifiers, the mistakes guitarists make when chasing his sound, how his rig evolved across different albums, and practical tips you can apply today. There's also a gear reference table and answers to the most common questions about his setup at the end.

Gear Myths That Will Derail Your Gilmour Tone

The "Just Buy a Black Strat" Trap

The most common mistake guitarists make when chasing the David Gilmour guitar rig is assuming the instrument is the whole story. His famous black Stratocaster — a 1969 Fender he acquired around 1970 — is central to his identity, but that guitar has been heavily modified over the decades: swapped necks, different pickups at different periods, custom wiring, and a tremolo setup tuned to his specific preferences. A stock vintage Strat won't automatically give you his tone.

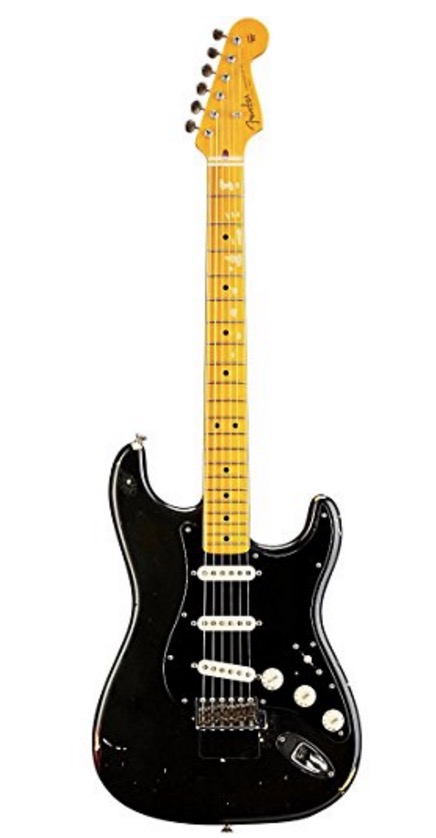

The same applies to signature models. You can invest in a Gilmour signature Strat and still sound nothing like him without understanding how he uses the rest of his rig. The guitar matters — but it's the last mile, not the entire journey.

• Gilmour's black Strat has had multiple neck replacements over the years

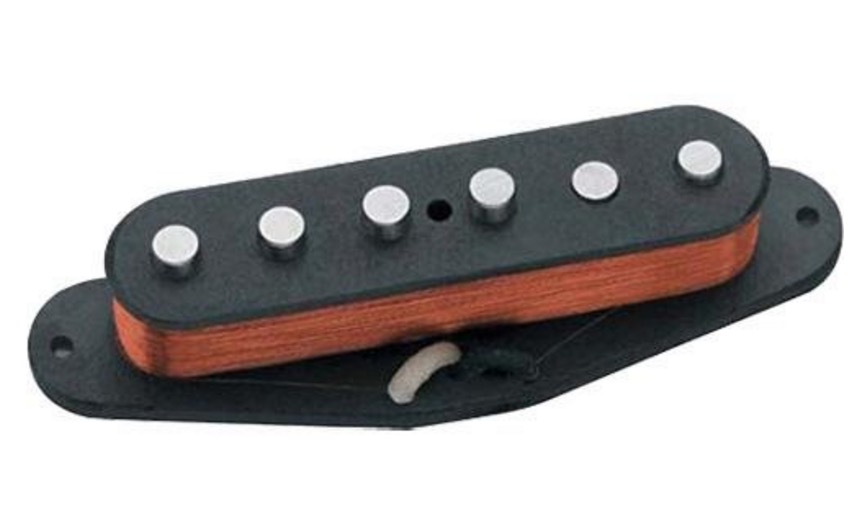

• His pickup choices changed between eras — EMG active pickups in the 1980s, custom passive sets later
• Signature models reflect one specific era of his setup, not the full picture

Overlooking the Amp's Role

The other major error is ignoring the amplifier. Gilmour ran Hiwatt DR103 heads — 100-watt British amps known for their headroom and clarity — into WEM Super Starfinder cabinets and later Fender speaker cabs. That clean, slightly stiff foundation is what lets his effects work properly without collapsing into mud.

Plugging a full pedalboard into a compressed modeling amp will strip out the dynamic range that makes his tone breathe. You don't need a vintage Hiwatt, but you do need an amp with genuine, uncompressed clean headroom. Without it, the effects fight each other instead of layering.

Pro tip: Dial your amp for the cleanest, most transparent tone it can produce before adding any pedals — Gilmour's effects only work right when they're sitting on top of a genuinely open clean foundation.

The David Gilmour Guitar Rig Through the Decades

The Telecaster and Early Strat Era

Gilmour's earliest studio work with Pink Floyd featured a white 1968 Fender Telecaster, which you can hear on the first several albums before the black Strat took over as his primary instrument. The Telecaster gave him a brighter, more cutting character that's distinctly different from the rounder tone most people associate with him. He also played a hand-built Bill Lewis guitar during this period and experimented with various borrowed instruments on tour.

By 1972, Gilmour was also using a custom double-neck guitar that let him switch between standard and 12-string configurations mid-performance. It's an early indicator of how deliberately he thought about tonal variety — not just dialing one great sound, but building a rig that could shift textures within a single concert.

The Black Strat Years

The black Strat era — spanning roughly from Meddle through The Wall and into his solo work — is what most people picture when they think of the David Gilmour guitar rig. According to his own documented history, this period centered on Hiwatt heads, a rotating cast of fuzz and sustain pedals, and early Electro-Harmonix effects. The pedalboard wasn't static — it shifted album by album — but the underlying logic stayed consistent: clean amp, thoughtfully stacked effects, deliberate use of dynamics.

For a useful comparison from another guitarist who built an equally iconic rig through careful, evolving choices, the Billy Gibbons guitar rig rundown makes for interesting reading — the contrast between his compressed, fuzzy Texas approach and Gilmour's open British tone is instructive.

Troubleshooting Your Gilmour-Inspired Setup

Your Fuzz Sounds Harsh or Splattery

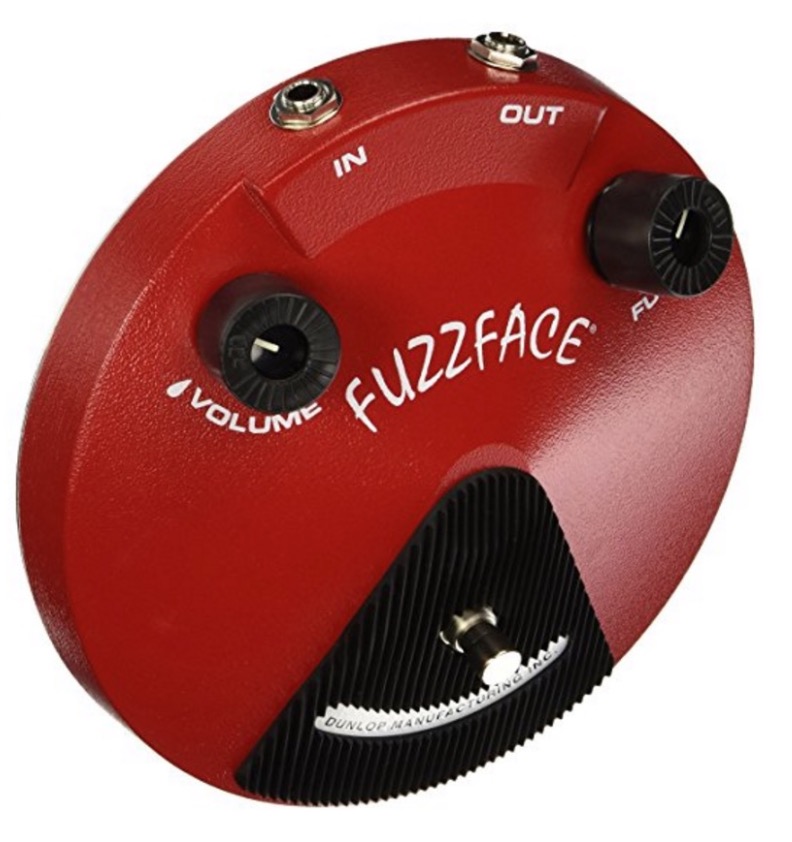

If your Fuzz Face or Big Muff is delivering a harsh, uncontrolled tone instead of Gilmour's smooth sustain, the most likely cause is signal chain order or input impedance. Fuzz pedals — especially germanium Fuzz Faces — are highly sensitive to what precedes them in the chain. Any buffered pedal placed before a Fuzz Face, including most tuners and the majority of Boss effects, can strip the high-end interactivity that makes fuzz sound organic and alive.

• Place fuzz pedals first in your chain, directly after the guitar with no buffers before them
• Roll back your guitar's volume knob to around 7 or 8 — fuzz cleans up dramatically and becomes far more musical
• Check your fuzz's battery or power supply — germanium circuits are voltage-sensitive

Your Delay Sounds Cluttered

Gilmour's delay work — particularly his use of the Binson Echorec and the MXR Digital Delay — is rhythmic and precise, not washy. If your delays are muddying the tone, you're likely setting the repeat level too high or using feedback settings that stack up quickly. Pull the mix level down until individual repeats are audible but clearly sit behind the dry signal. Gilmour uses delay to add dimension and space, not to create a wall of ambience. Try setting your delay time to dotted eighth notes at the song's tempo — it's a classic Gilmour technique that adds motion without clutter.

Pro Tips for Getting Closer to the Gilmour Sound

The Big Muff Is Just the Start

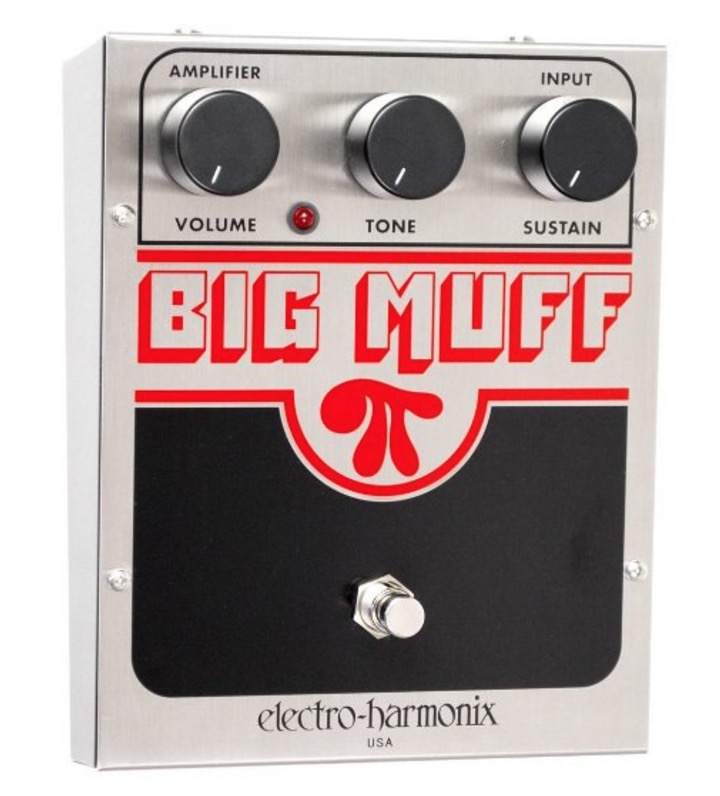

The Electro-Harmonix Big Muff Pi is the most iconic piece of the Gilmour effects puzzle, but using it well takes some nuance. He typically ran the sustain control near maximum while keeping the tone control in the middle range — avoiding both the thin, nasal upper end and the boomy low end. The key is pairing the Big Muff with a genuinely clean amp so the fuzz has an open, uncompressed canvas to sit on. Stack it on top of a driven amp and you lose the definition that makes his leads so clear despite the heavy saturation.

If you're building out your pedalboard and want to understand the broader signal chain principles behind setups like this, the best Strat pickups for blues and classic rock guide covers the pickup side of the equation that underpins tones like Gilmour's from the source.

Pick Attack and Playing Dynamics

No gear combination will get you to the Gilmour sound if your playing technique doesn't match his dynamics. He's a precise player in terms of volume control — he plays softly when he wants notes to bloom and swells into phrases, and digs in when he needs bite and presence. This responsiveness is especially critical with fuzz pedals, which react dramatically to pick attack and guitar volume settings.

• Use your guitar's volume knob actively during performance, not just as a set-and-forget control
• Practice the same phrase at three different pick attack levels and listen to how the fuzz character shifts
• Work on slow, controlled string bends with wide vibrato — Gilmour's vibrato is deliberate, not fast or nervous
• Let notes sustain fully before moving on — his phrasing relies on space between notes as much as the notes themselves

Warning: Don't overlook your picking hand — Gilmour's tone is built as much on how he plays as what he plays through, and no pedal compensates for a stiff, consistent attack that ignores dynamics.

Knowing When to Use — and When to Skip — Gilmour's Effects

When Layered Effects Work Best

The full David Gilmour guitar rig treatment makes the most sense in contexts that give each effect room to be heard distinctly. Slower, more open passages — sustained chord progressions, long lead lines with space around them — allow chorus, delay, and fuzz to stack without competing for the same sonic real estate. If the arrangement is dense, many of these effects will disappear into the mix regardless of how well you've dialed them in. Save the full pedal treatment for sections where the arrangement opens up and there's genuine space to fill.

When to Strip It Back

Not everything in the Gilmour catalog is saturated with effects. His rhythm playing during heavier sections often relied on a relatively dry tone — the amp, maybe a mild overdrive, nothing else. Running chorus and delay across every chord in a busy passage muddies the mix and makes the whole band sound less defined. Know when to bypass the board and let the guitar cut through cleanly.

• During dense chord passages, consider running completely clean or with light overdrive only
• Reserve the Big Muff for extended solos or prominent riff sections where the sustain actually serves the song
• Chorus and vibrato work best on clean or lightly overdriven parts — stacking them on top of fuzz creates a congested mess
• Delay works best when the note has space to ring — if the arrangement is already full, cut the delay mix or bypass it entirely

Frequently Asked Questions

The gear gets you into the room, but the dynamics get you the tone — Gilmour's sound lives in the space between the notes as much as in the notes themselves.
